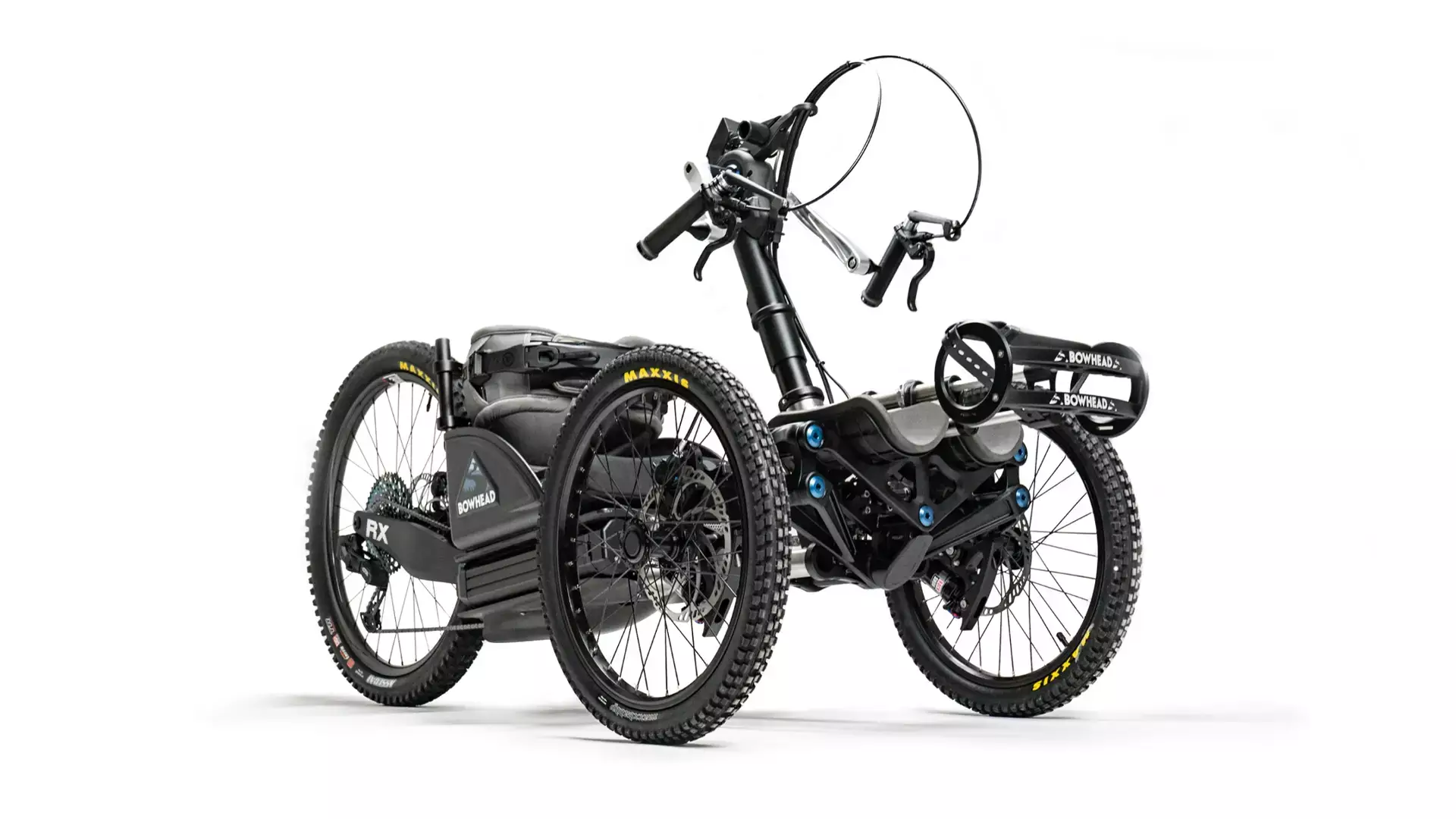

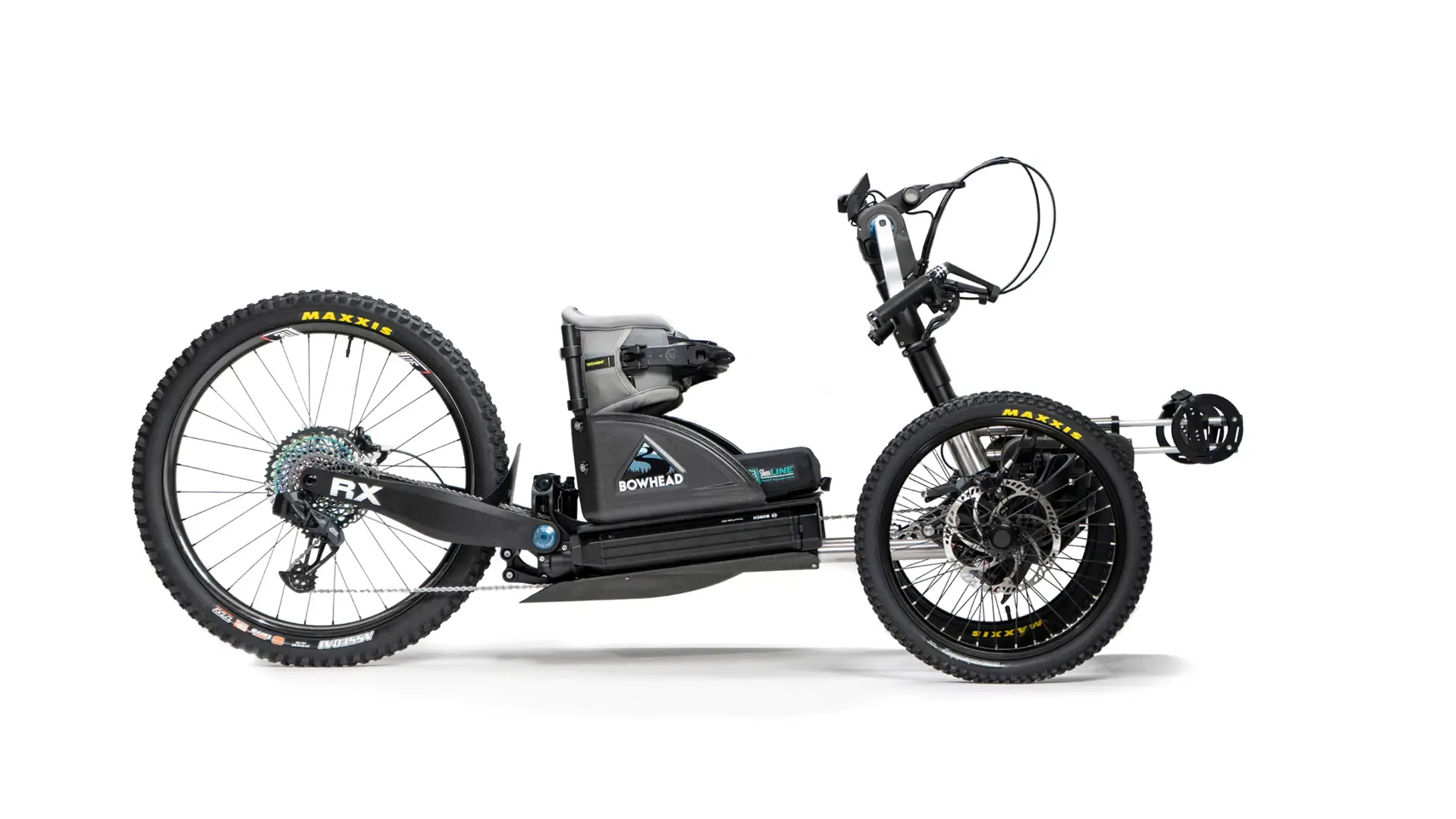

BOWHEAD RX ADVENTURE E-BIKE

The Bowhead RX is designed for off-road performance and is suitable for various surfaces, including paved roads, gravel tracks, and cross-country trails. It combines front-end articulation with a single-pivot MX-style rear swingarm and suspension system.

The Bosch Performance CX eMTB motor and batteries are centrally mounted on an aluminium subframe to provide a low centre of gravity for stability and control. The bike is customisable for each user, with a choice of frames, shocks, brakes, rotors and wheels, and a wide range of upgrade options.
Front-end articulation
Torque-sensing motor
MX-style suspension
PURCHASE FROM

£14,849

BOSCH eBIKE SYSTES

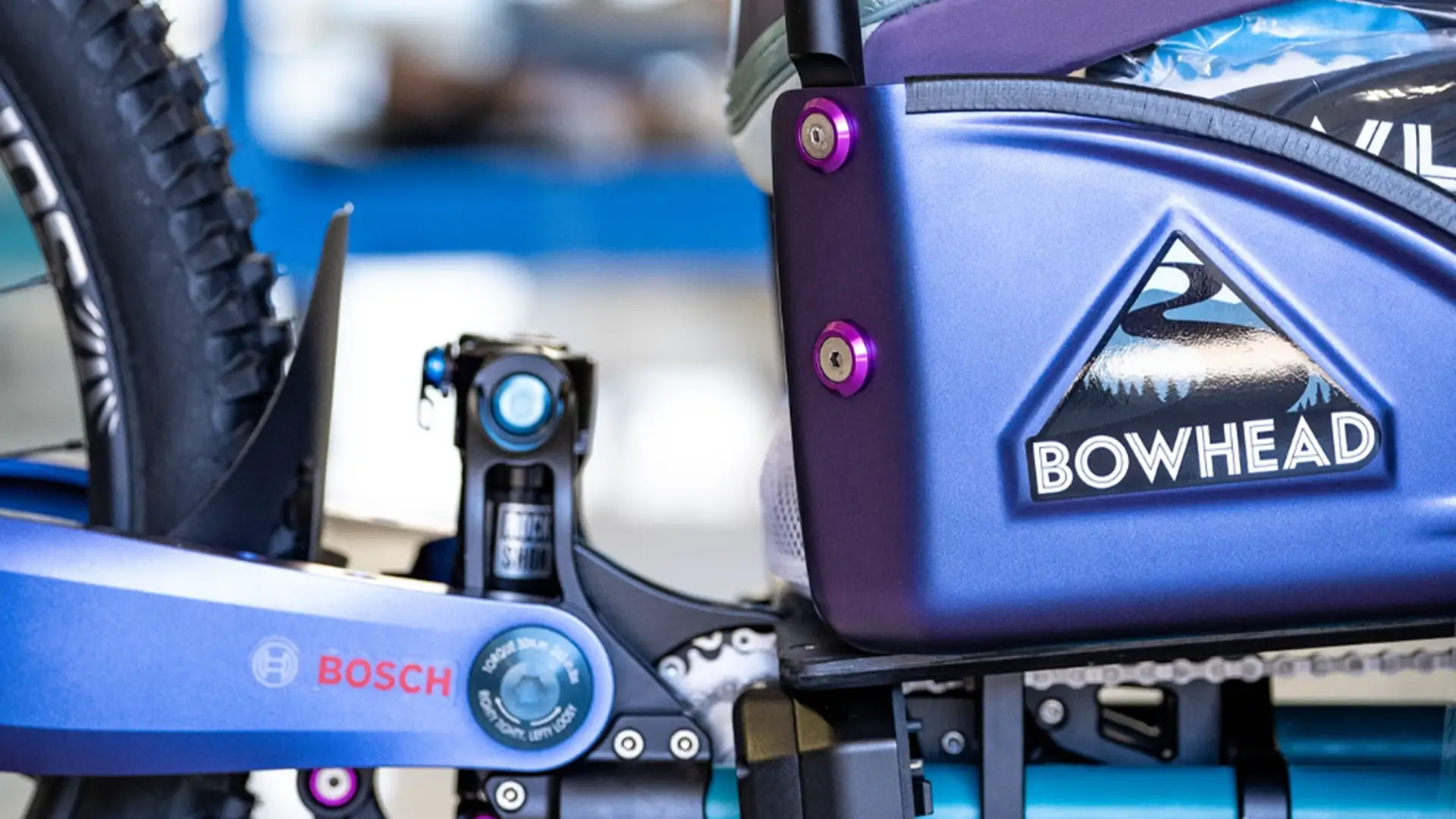

Powered by the Bosch Performance Line CX eMTB motor, the RX provides torque-sensing assistance with up to 340% power amplification and 85 Nm of maximum torque. Riders can select from Turbo, eMTB, Tour, and Eco assistance levels.

DURABLE, ADAPTIVE FRAME DESIGN

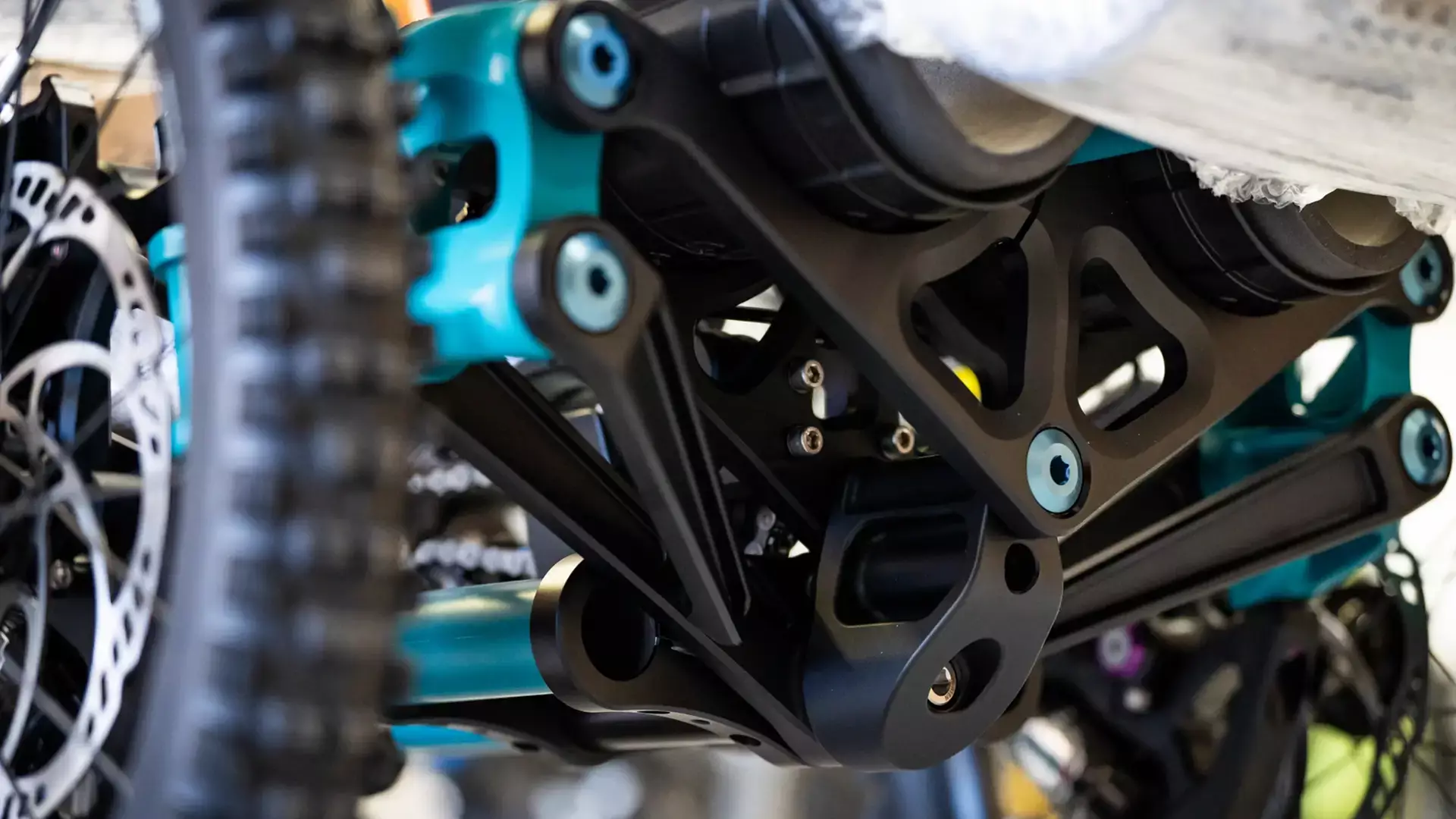

Aluminium subframe with Bowhead FLOW articulating front-end providing 17.8cm (7”) of effective articulation, customisable with Lean Assist Bands for added safety and control.

SUSPENSION

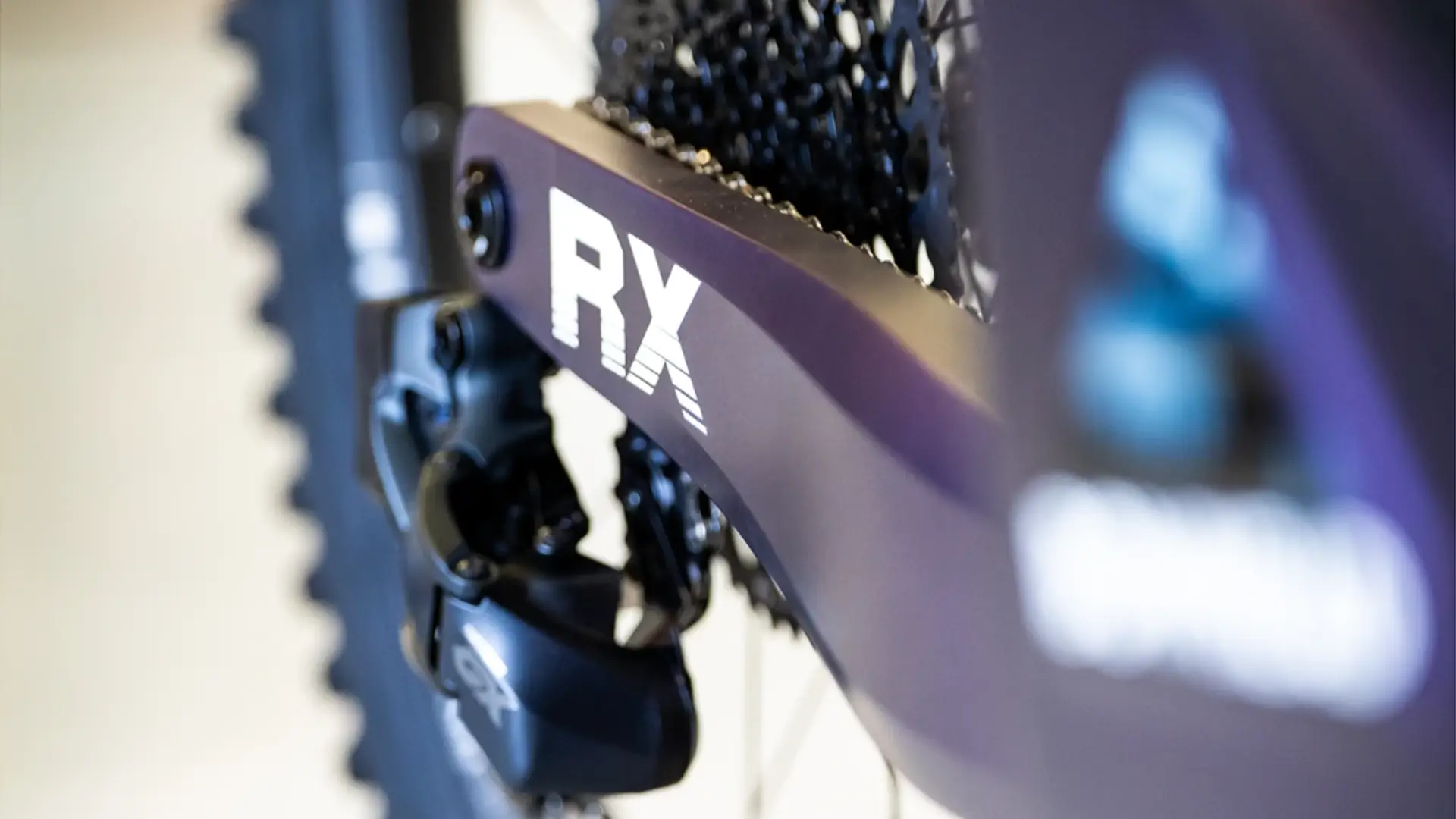

The Bowhead RX design includes 76mm (3”) independent front suspension and 114mm (4.5”) single-pivot rear suspension for handling varied terrains like roads, gravel tracks, and mountain trails.

CUSTOMISABLE FEATURES

Adjustable harnesses, quad control options, and brake lever configurations are tailored for each rider, while RideEngine harness sizes range from XS (61-66cm / 24-26”) to XL (99-112cm / 39-44”).
Specification Measurement (Imperial) Measurement (Metric)
Width 29 in 737 mm
Wheelbase 49 in 1257 mm
Height 35 in 914 mm
Length 72 in 1852 mm
Weight 95 lbs 43 kg
Top speed 15.5 mph 25 km/h
Assist level: Turbo 340% –
Assist level: eMTB 140-340% –
Assist level: Tour 140% –
Assist level: Eco 60% –
Max drive torque: Turbo 85 Nm –
Max drive torque: eMTB 85 Nm –
Max drive torque: Tour 50 Nm –
Max drive torque: Eco 40 Nm –
