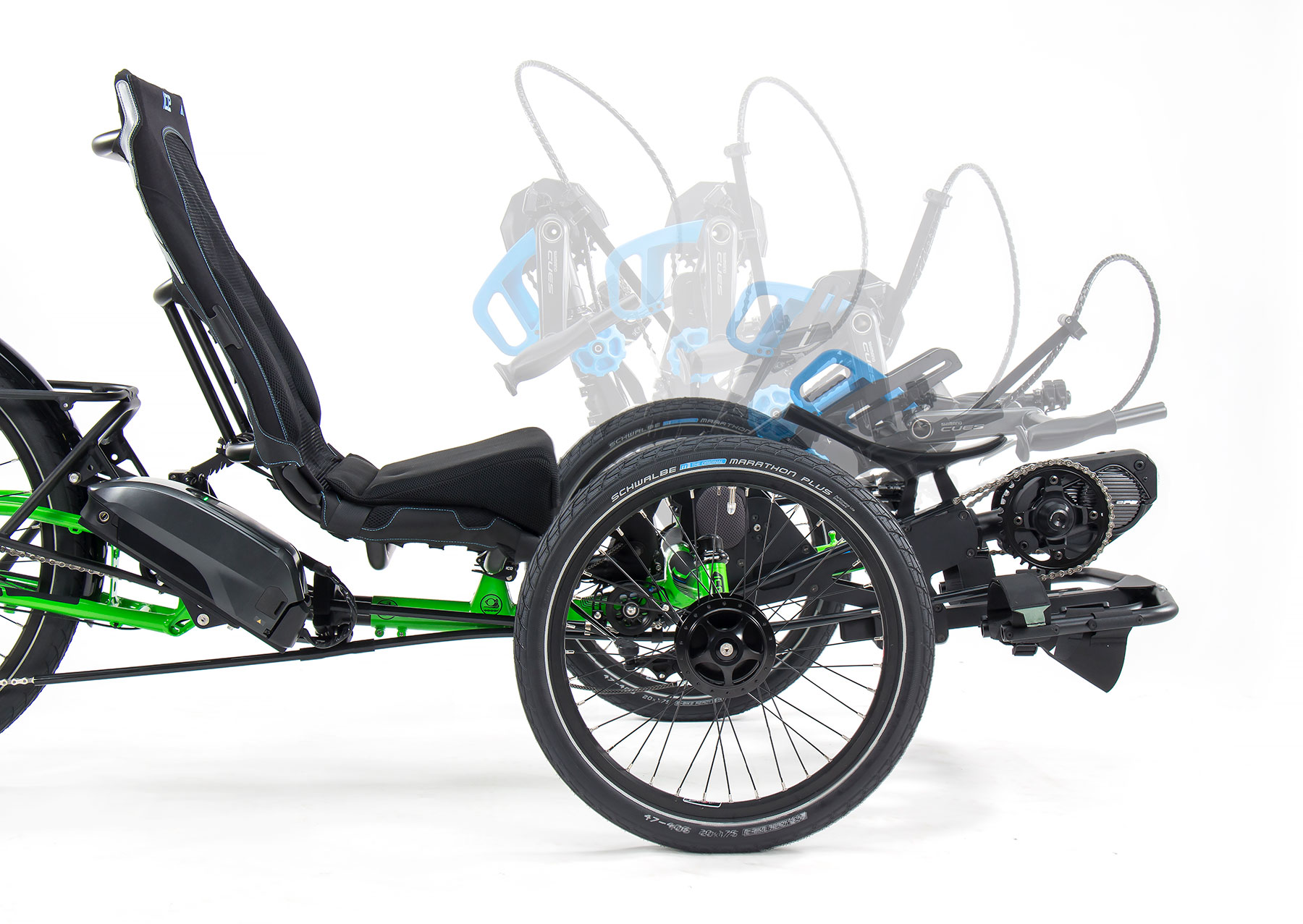

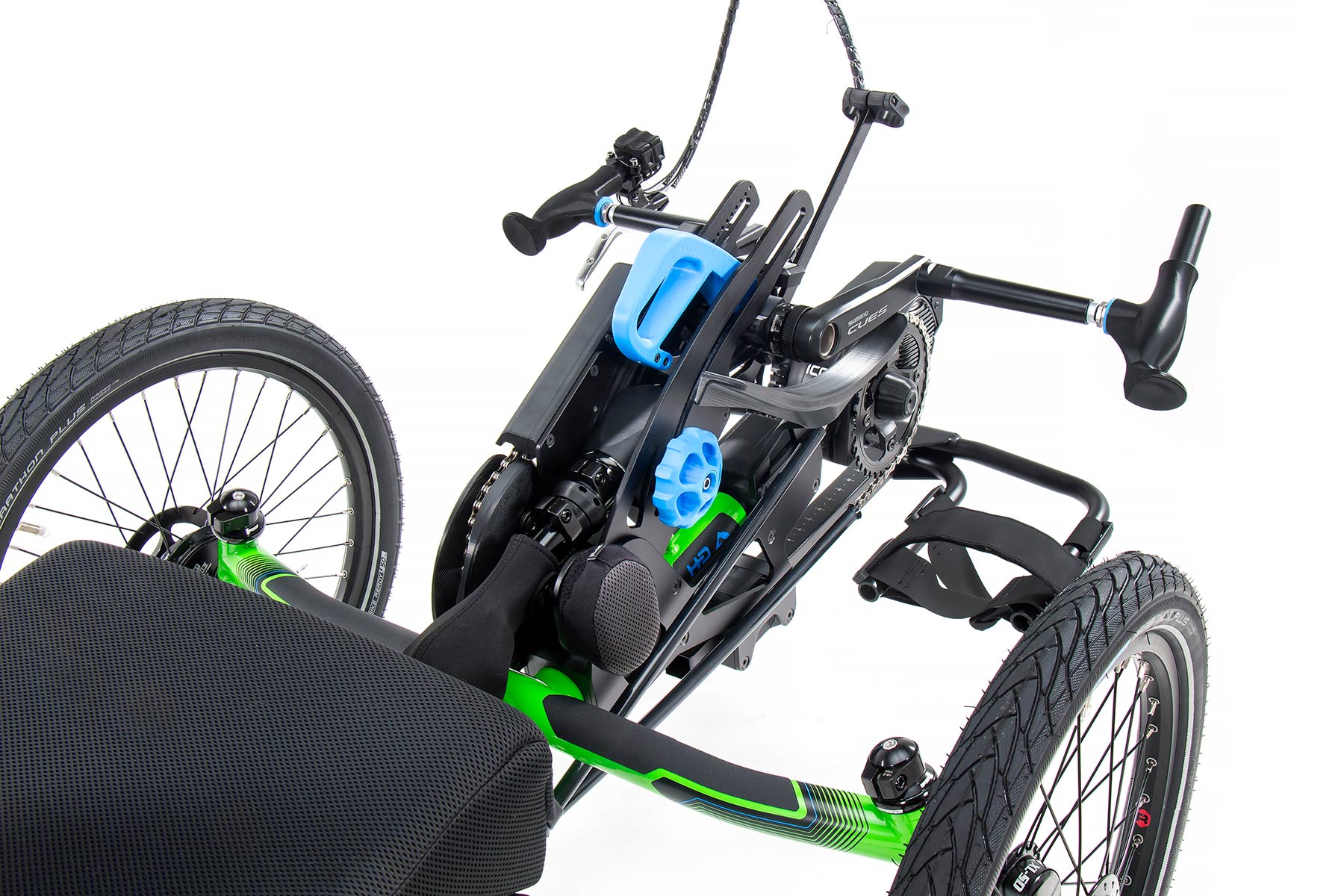

INNOVATIVE FOLDING ENTRY SYSTEMOur engineers have created an innovative folding entry system that allows the entire steering and pedals to simply fold forward at the push of a handle. Riders can easily transfer in and out of the handcycle from a wheelchair alongside, without the need for complicated and difficult maneuvers. Once seated, the rider simply pulls back on the handle and locks the system using one control knob. That’s it, you’re ready to roll.
The pedal position can be adjusted forwards or backwards without the need for tools, allowing the rider to easily set the pedals/cranks in the position that best suits their needs. This can be done at anytime.
HANDCYCLE ERGO-FLOW SEATINGThe
Ergo-Flow Handcycle seat has been designed to provide optimum support. It is lightweight and breathable which is ideal for warmer climates and active cycling. Featuring a more upright riding position suited to handcycling, the seat is also adjustable, offering four different seat angle positions. Breathable fabrics maximise airflow and cooling. Additional cushioning in the base and side bolsters further enhances riding comfort and support. All seats feature a handy top weather-sealed pocket for storing small items such as keys and phones.
Shimano EP801 Cargo Motor System and Nexus 5E Di2 Hub GearingThe ICE Handcycle is available with the
Shimano EP801 Cargo E-Bike motor system. All the power you need at just the right time. Responsive, quiet, lightweight and controllable. Featuring a powerful 250w electric motor, 85Nm torque and 630Wh battery. Choose between Boost, Trail, Eco and intelligent Walk modes. Supports assist level up to 25 km/h or 20mph, depending on regional regulations.
The
Nexus Inter 5e is an internal hub gearing system that provides manual and fully automatic electronic gear changing at the push of a button. It offers a wide 263% gear range and is engineered specifically for the high pedaling forces of electric bikes.
SMALL TURNING RADIUS & RIDE CAPABILITIESThe
Adventure HD model is designed to deliver exceptional manoeuvrability, benefiting from a tighter turning circle than many other types of handcycles. This allows riders to navigate narrow paths, woodland trails and more complex routes with greater ease and confidence.
The world-famous ICE Trikes
indirect steering system, combined with
no-brake steer geometry, enhances control and precision, ensuring that steering remains smooth and stable even during tighter turns or longer rides. The result is an agile, responsive, comfortable and active riding experience.
Adjustability, controls and supports
The Handcycle features easy-to-use, ergonomically designed controls. Gearing is controlled either fully automatically or manually using the electronic push buttons. Braking is controlled using the brake levers fitted to both or single sides of the handlebars and uses powerful Sturmey Archer 90mm black drum brakes.
The rider’s feet are supported and restrained using the adjustable footrests and straps. A quick-release lever enables easy adjustment of the footrests to allow for different height riders. Additional frame and side pads allow for extra cushioning and support where needed.
The pedal position can be adjusted forwards or backwards, allowing the rider to easily set the pedals in the position that best suits their needs. This can be done at anytime. No tools are required.
